JRC NRD-371A Digital HF Monitor Receiver + Spectrum Analyzer + Connection Controller We Ship Worldwide

Manufacturer
JRC
Model

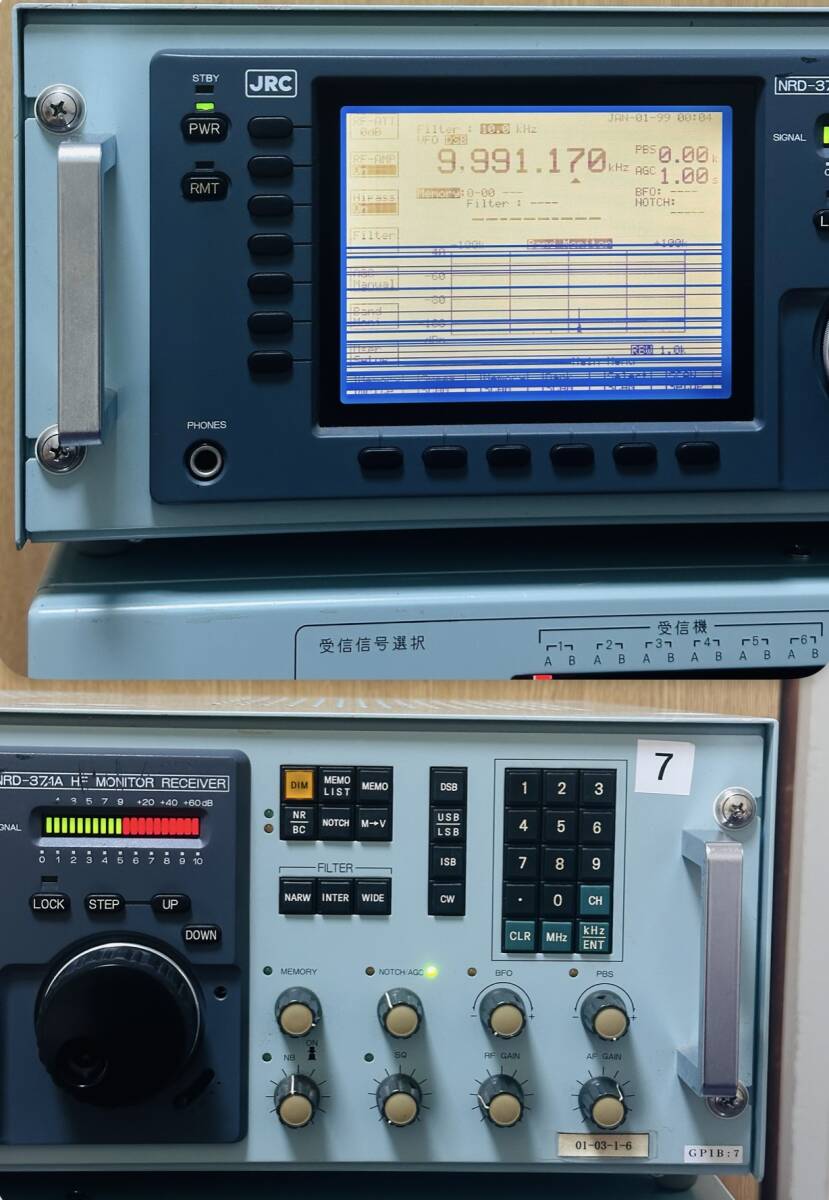

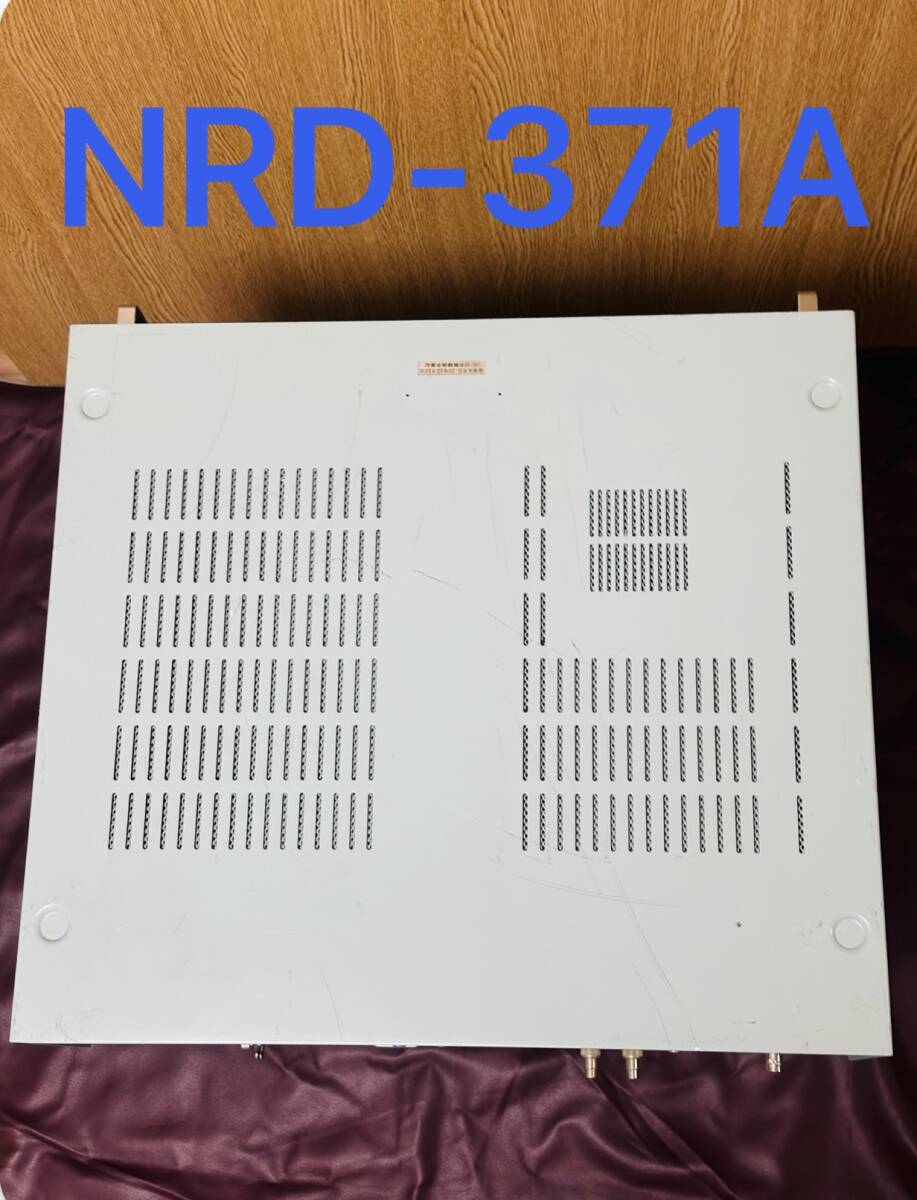

NRD-371(A) Digital HF Monitor Receiver

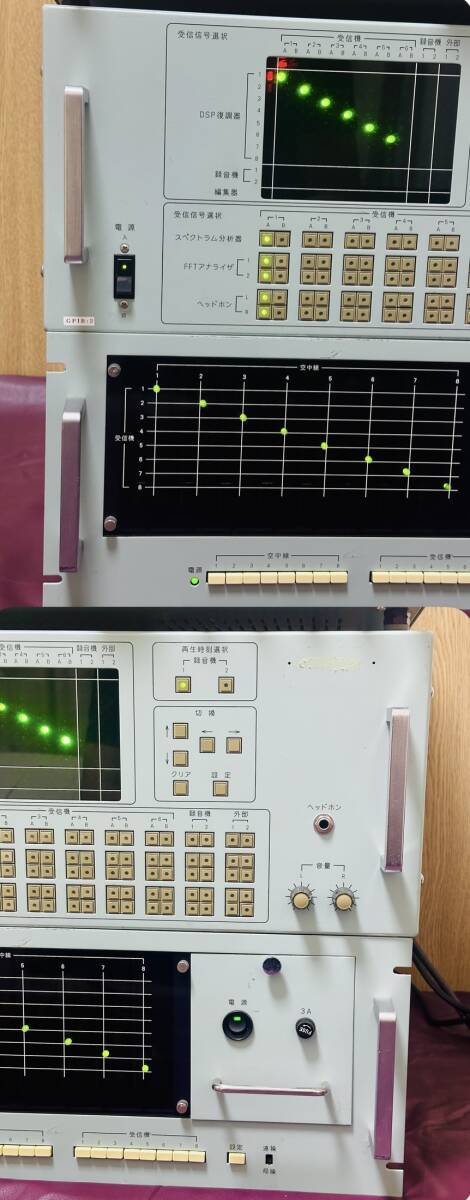

Unit 1:
Controller for connecting receiver to demodulator/spectrum analyzer
Unit 2:
Controller for connecting antenna to receiver

Specifications:

RF Amplifier: Approx. 10dB
RF Attenuator: 0dB/10dB/20dB/30dB
PBS: +/- 2.5kHz
Notch Attenuator: >40dB
Notch Bandwidth: +/- 2.5kHz
Squelch: All modes
AGC: Attack Release 10ms – 5s (20ms step)
IF Digital Filter: 10kHz / 6.0kHz / 3.2kHz / 2.4kHz / 1.8kHz / 1.0kHz / 0.5kHz / 0.2kHz

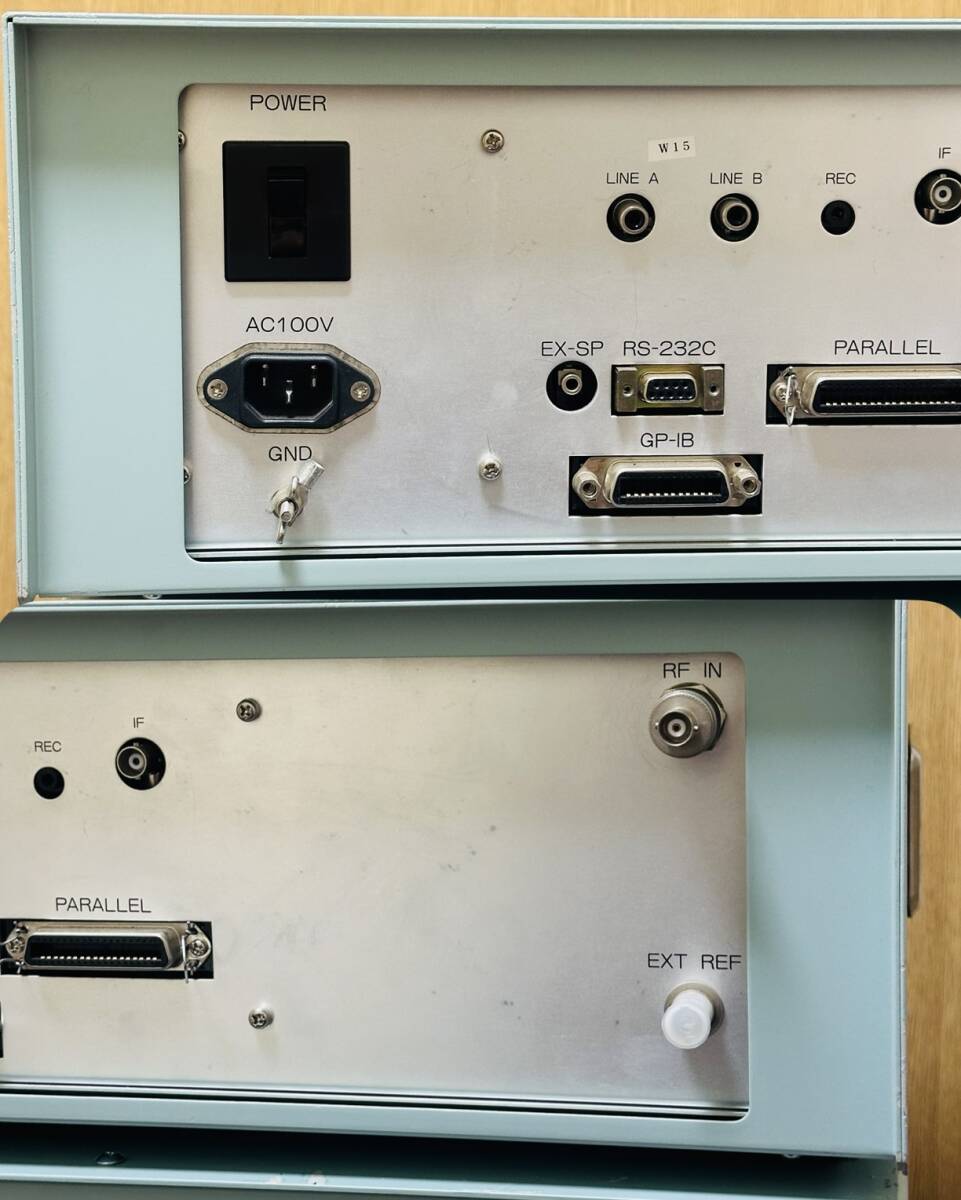

Interface: RS232C / GPIB

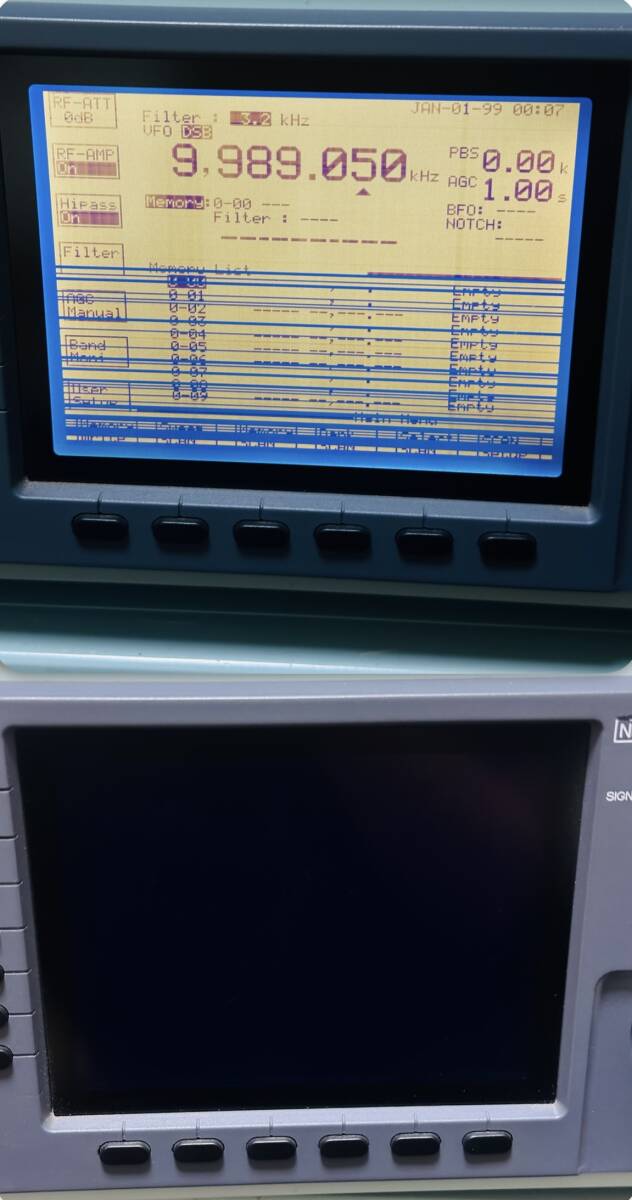

Band Monitor: Span = 10kHz / 50kHz / 100kHz / 200kHz
IF Output: 455kHz 50Ω (BNC) -10dB
3rd IP+: >+30dB
Dynamic range: >109dB (BW=0.5kHz)
Coverage: 10kHz to 29,999,999kHz
Mode: USB/LSB/CW/DSB/FSK/FM/ISB
Stability: >0.3ppm
Step: 1Hz
Memory: 1,000ch (100ch x 10 groups)
Power: AC100V 50/60Hz
Dimensions: Width 480 x Height 150 x Depth 460 mm
Weight: 12kg (26.45lbs)

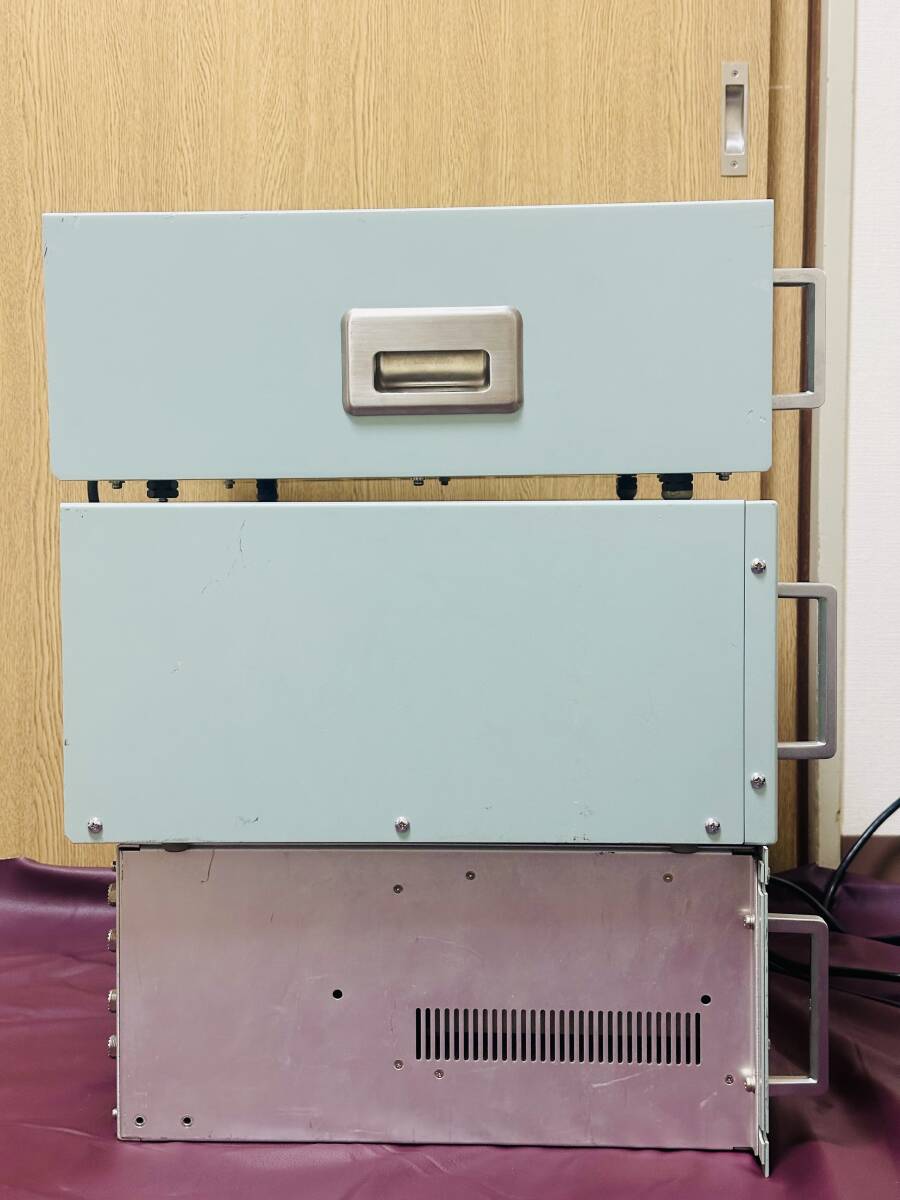

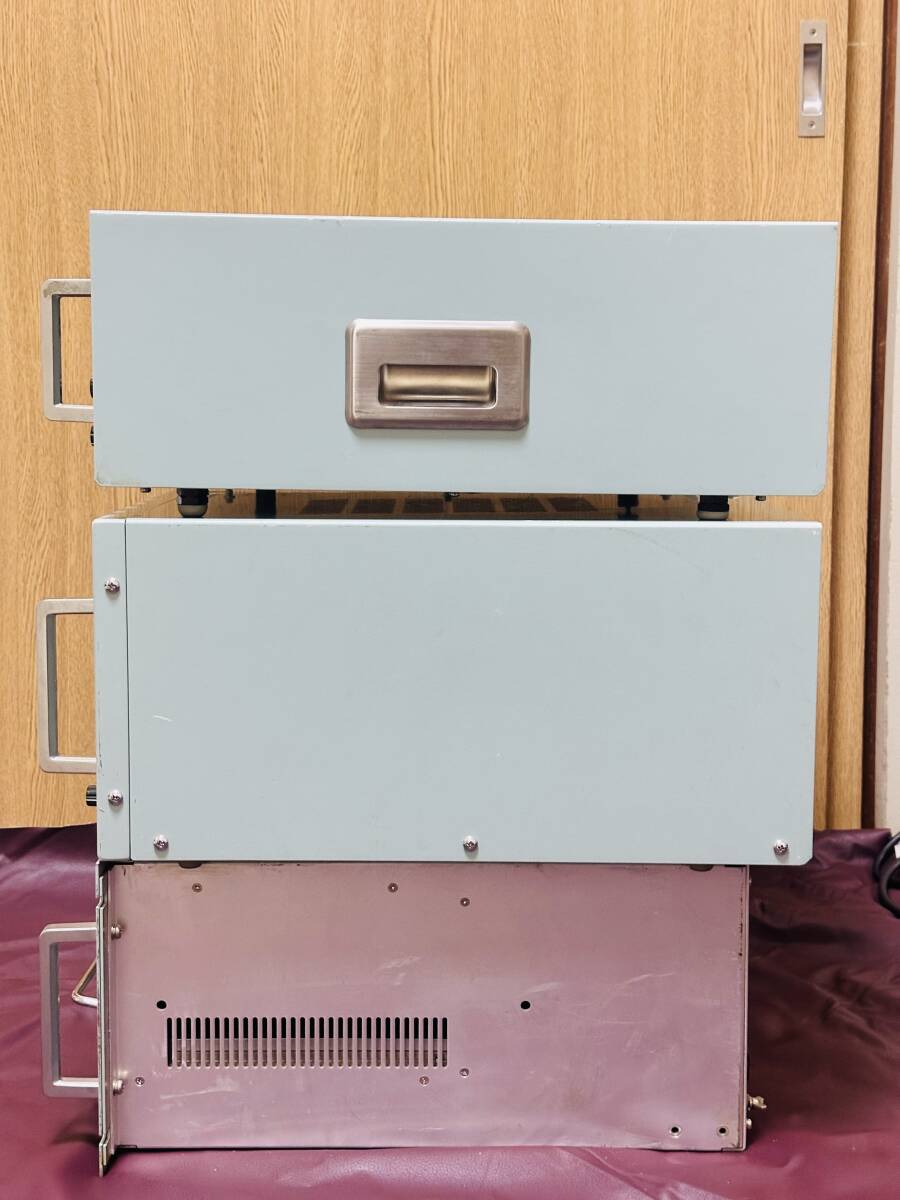

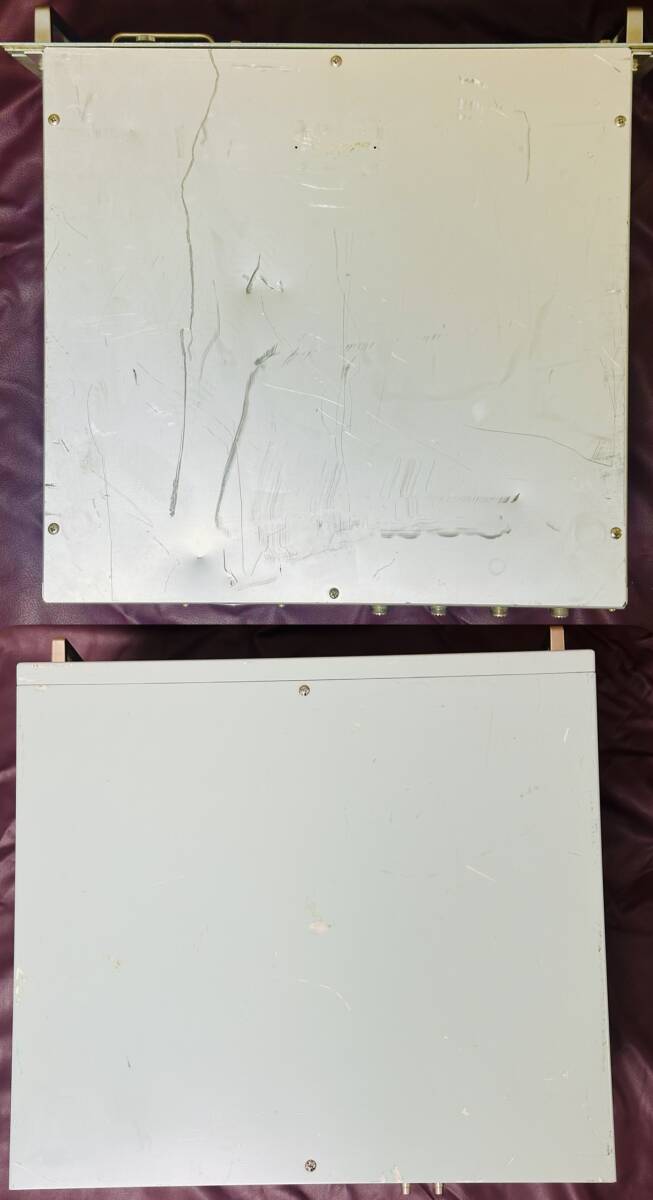

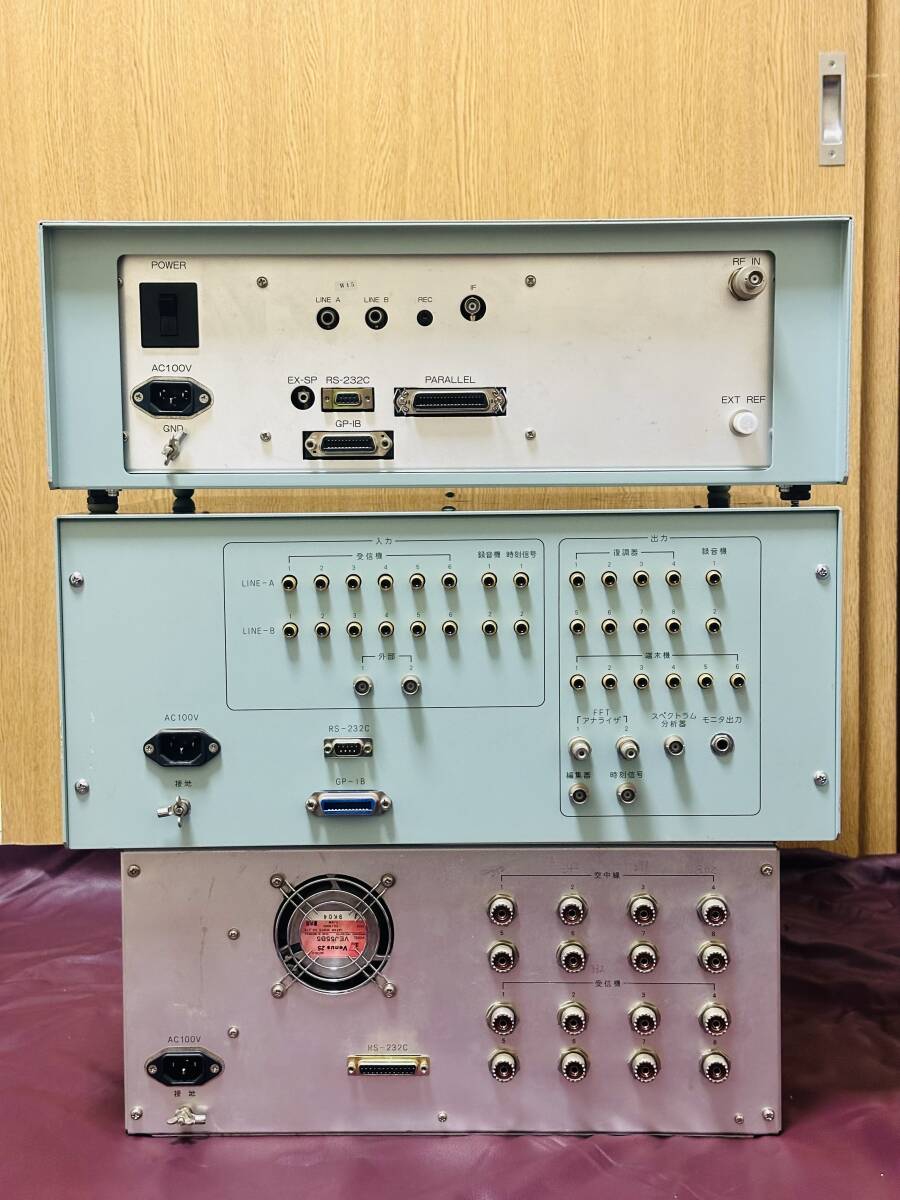

Everything shown in the photos is included.

Condition
Considering its age, it is in good condition.

All buttons are in working order.

The speaker has been confirmed to work.

I don’t know how to operate it, so I can’t confirm other operations.

Only the power supply has been confirmed.
