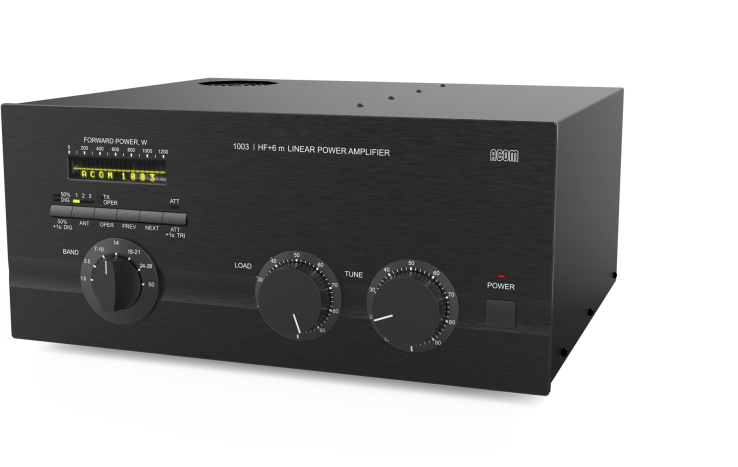

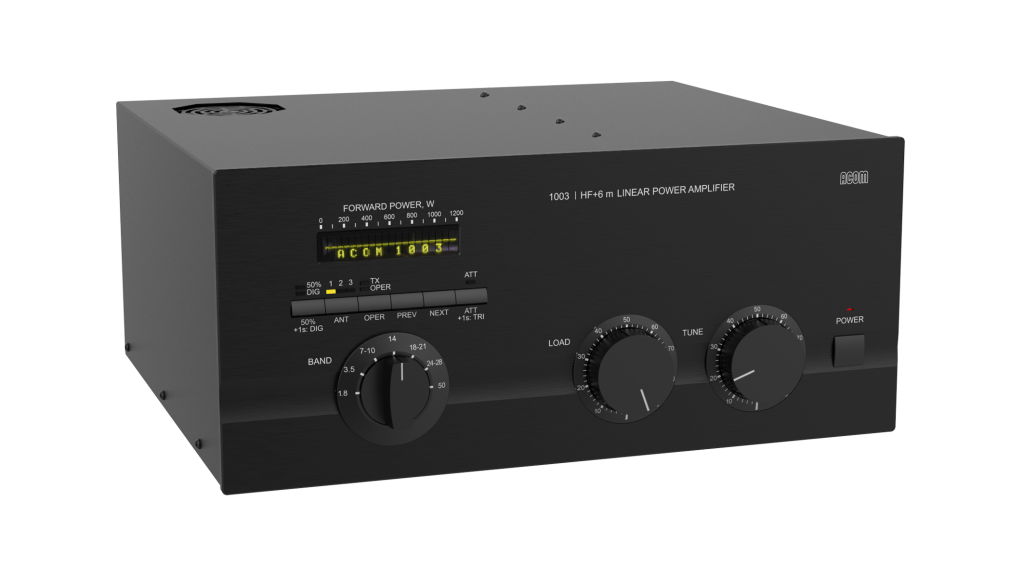

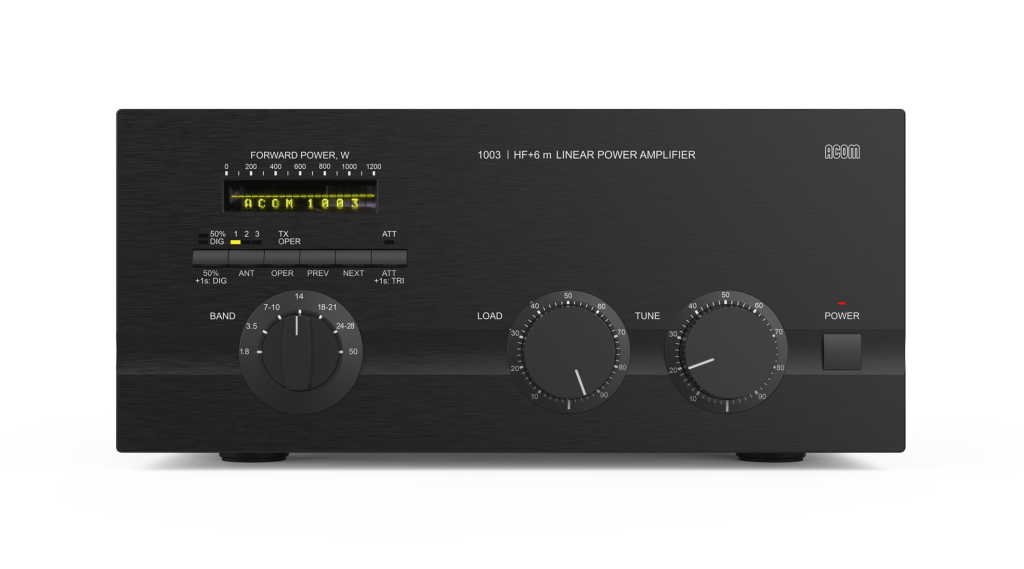

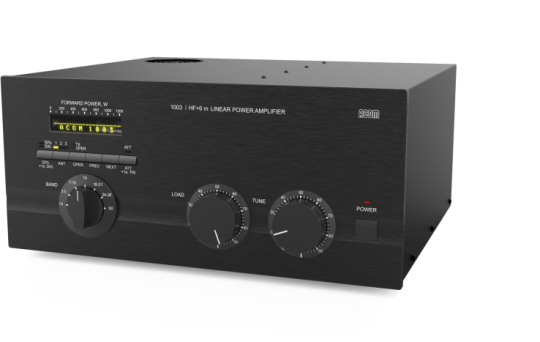

Description

Frequency Coverage

All amateur bands in the 1.8-54 MHz frequency range:
- 1.800 – 2.000 MHz (160 m band)
- 3.500 – 4.000 MHz (80 m band)
- 5.250 – 5.450 MHz (60 m band)*
- 7.000 – 7.300 MHz (40 m band)
- 10.100 – 10.150 MHz (30 m band)
- 14.000 – 14.350 MHz (20 m band)
- 18.068 – 18.168 MHz (17 m band)
- 21.000 – 21.450 MHz (15 m band)
- 24.890 – 24.990 MHz (12 m band)
- 28.000 – 29.700 MHz (10 m band)
- 50.000 – 54.000 MHz (6 m band)*
  (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations.

Power Output

1000 W PEP or 900 W continuous carrier, with no limitation to the operating mode;

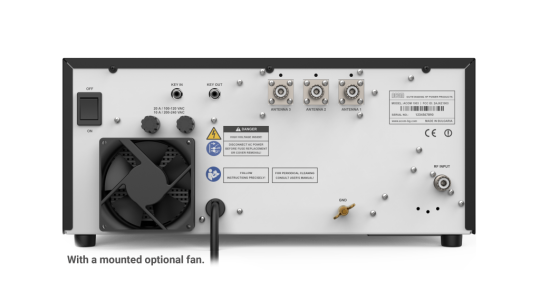

In continuous carrier modes (RTTY etc.) for transmissions longer than 5 minutes, the external auxiliary fan must be mounted;

Intermodulation Distortion at rated power

Better than 34 dB IMD₃ with regard to one of the two tones (40 dB below PEP);

Hum and noise

Not more than 4,5% (-27 dB) AM depth at rated power;

Harmonic Emissions Output Suppression

1.8-29.7 MHz – better than 50 dB below rated power;
50-54 MHz – better than 70 dB below rated power;

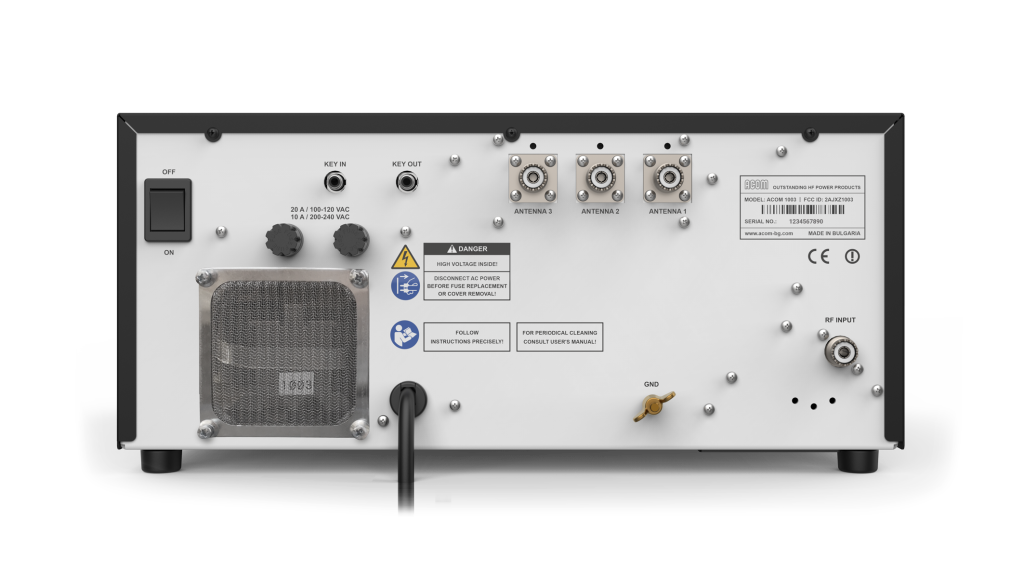

Input and Output Impedances

Nominal impedance: 50 Ω unbalanced, UHF / PTFE coaxial connectors (SO-239A);
Input circuit: factory tuned low-pass filters for best linearity and input SWR not more than 1.3 in every amateur band from 160 m to 6 m;;
Bypass path SWR: not more than 1.1 continuously from 1.8 to 54 MHz;
Minimum range of impedance matching capability at the output: all loads with SWR up to 3* at any phase angle;
(*) The drive power must be reduced at SWR above 3 in order to keep the Reflected Power under 250 W.

HF Power Gain

12 dB ±1 dB (50 W – 80 W at the input for rated output power);

Mains Power Supply Voltage

90-132 VAC / 180-264 VAC (taps for 8 nominal voltages: 100, 110, 120, 200, 210, 220, 230 & 240 VAC, ±10% tolerance), 50-60 Hz, Single phase;

Mains Power Consumption

2000 VA @ at 240 VAC;

Safety and Electromagnetic Compatibility

Complies with European Union’s CE safety and electromagnetic compatibility requirements;
Complies with the US Federal Communications Commission (FCC) regulations – FCC Identifier: 2AJXZ1003, Date of Grant: 03 June 2025;

Size & Weight (operating, excluding connected cables)

WxDxH: 423x398x195 mm, 21.0 kg (16.7×15.7×7.7 inches, 46.3 lbs.);

Shipping Size & Weight

WxDxH: Approx. 632x583x413 mm, 25.0 kg (24.9×23.0x16.3 inches, 55.1 lbs.);
Please, contact us for shipment details;

Operating environments

Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
Height above sea level: up to 3050 m (10000 ft) without output deterioration.
