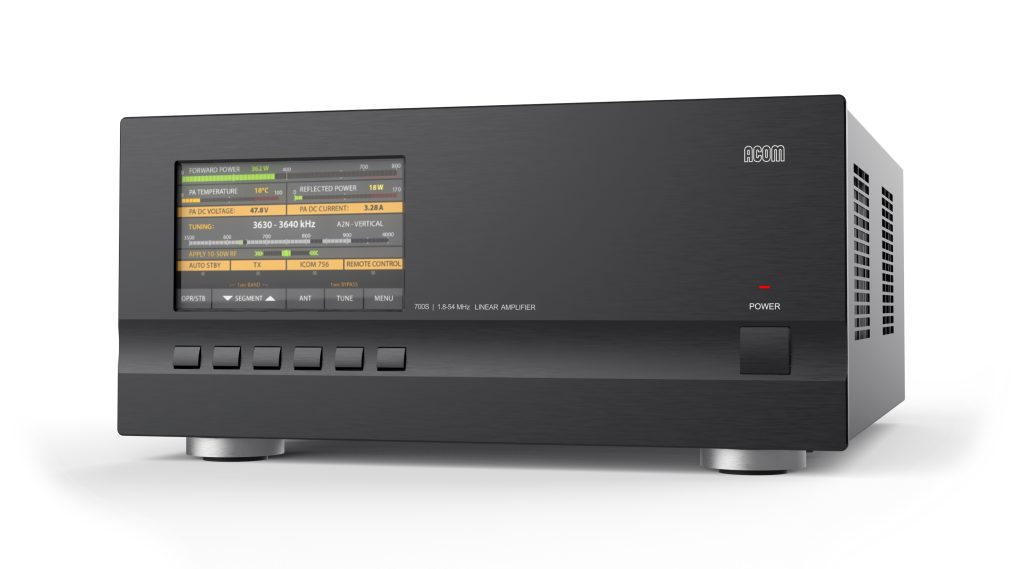

Description
Frequency Coverage
- All amateur bands from 1.8 through 54 MHz:
- 1.800 – 2.000 MHz (160 m band)
- 3.500 – 4.000 MHz (80 m band)
- 5.250 – 5.450 MHz (60 m band)*
- 7.000 – 7.300 MHz (40 m band)
- 10.100 – 10.150 MHz (30 m band)
- 14.000 – 14.350 MHz (20 m band)
- 18.068 – 18.168 MHz (17 m band)
- 21.000 – 21.450 MHz (15 m band)
- 24.890 – 24.990 MHz (12 m band)
- 28.000 – 29.700 MHz (10 m band)
- 50.000 – 54.000 MHz (6 m band)*
- (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;
Rated Output Power
- 700 W ±0.5 dB, PEP or continuous carrier;
- You will have to reduce the output power to about 450 W in order to keep the mains current consumption below 16 A if the amplifier is operated at below 200 VAC mains supply voltage.
Intermodulation Distortion (IM3)
- Better than 31 dB below rated PEP;
Harmonic and Parasitic Emissions Output Suppression
- Better than 60 dB (65 dB typically);

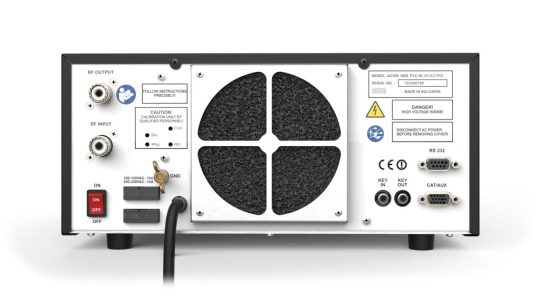

Input and Output Impedances
- Nominal value: 50 Ohm unbalanced, UHF (SO-239) type connectors;
- Input circuit: Broadband, SWR below 1.2:1 (1.1:1 typically), 1.8-54 MHz continuous range without retuning or switching;
- RF bypass path: SWR – below 1.1:1, 1.8-54 MHz;
- Acceptable SWR at the output load (the antenna): up to 3:1 with proportional power reduction and up to 1.5:1 for full output power;
RF Power Gain
- 14 dB ±1 dB (typically 27 W drive for 700 W output power);
Mains Power Supply Voltage
- 100-240 VAC, ±10%, 50-60 Hz, Single phase;
Mains Power Consumption at Full Output Power
- 1350 VA or less with power factor of 0.95 or higher;
Mains Power Consumption in Low Energy (Waiting) Mode
- Less than 1 VA;
Safety and Electromagnetic Compatibility
- Complies with European Union’s CE safety and electromagnetic compatibility requirements;
- Complies with the US Federal Communications Commission (FCC) regulations – FCC Identifier: 2AJXZ700S, Date of Grant: 22 December 2017;

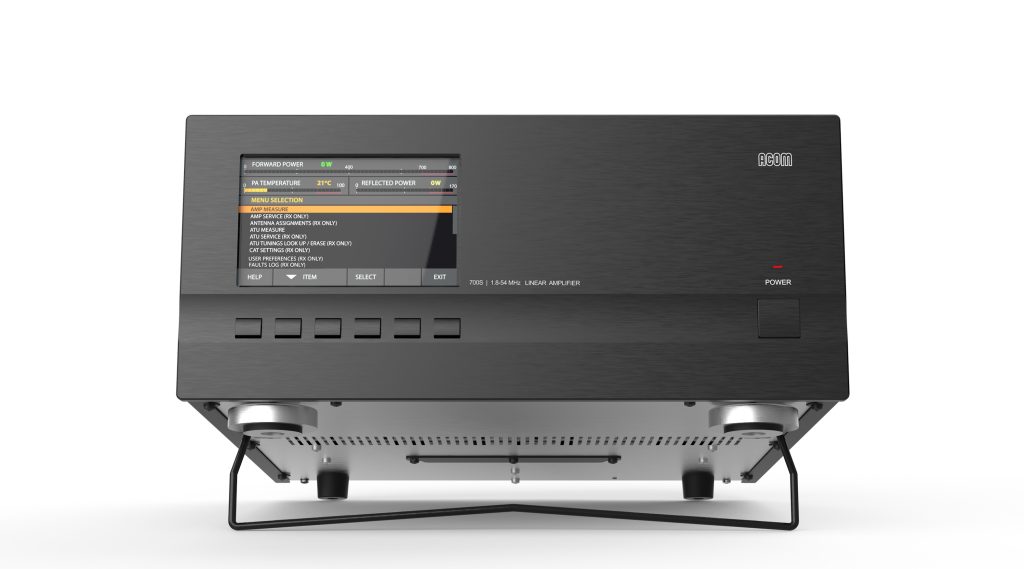

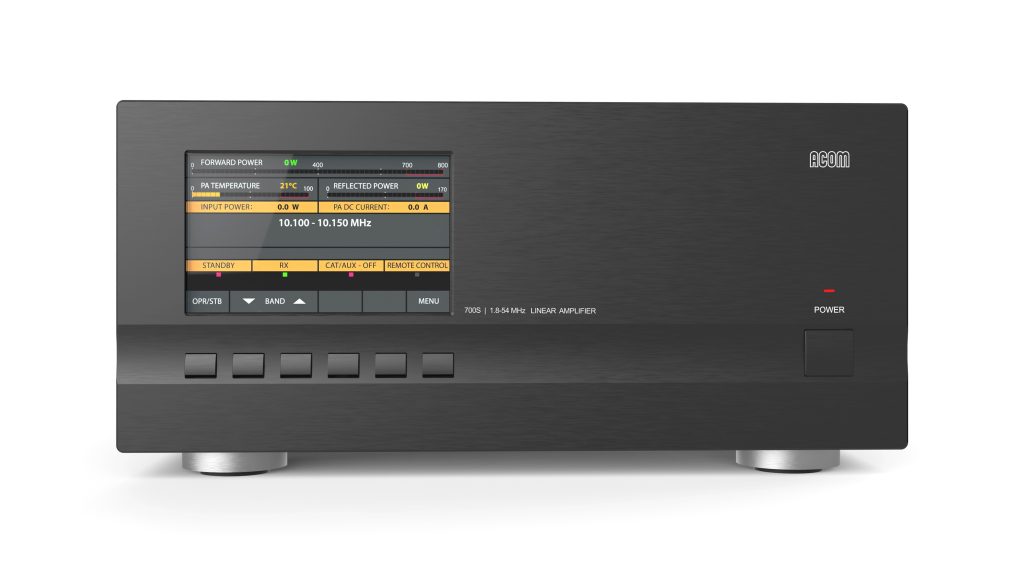

Size & Weight (operating, excluding connected cables and opened tilt foot bar)
- WxDxH: 326x388x155 mm, 11.6 kg (12.9×15.3×6.1 inches, 25.6 lbs.);
Shipping Size & Weight
- WxDxH: Approx. 535x595x375 mm, 16.0 kg (21.1×23.5×14.8 inches, 35.3 lbs.);
- Please, contact us for shipment details;
Operating environments
- Temperature range: -10 to +40 degrees Celsius (14 degrees F to 104 degrees F);
- Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
- Height above sea level: up to 3050 m (10000 ft) without output deterioration.
