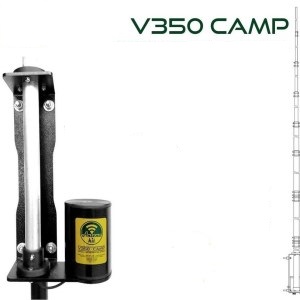

ANTENA KIT V350 CAMP – VERTICAL MULTIBAND ANTENNA 6-80M

Call for Price

1 in stock

Description

Brand:

Technical characteristics:

• Frequency: TX 3.5 – 54MHz / RX 2.0 ~ 90MHz
• Maximum power: 250W PEP (SSB) / 120W PEP (CW / FM)
• Polarization: vertical
• Impedance: 50 ohms
• SWR: 1.5: 1
• Connector: SO-239
• Length: 7.03 m
• Winds: 50 km / h.
• Weight: 3.0 Kg

Installation:

• Winds over 50 km / h, make stakes
• Recommended more than 2 m from the ground
• Use 27.8 m coaxial cable
• Radials are not required
• grounding

Parts:
• 01 support bracket
• 18 nuts of 4 mm – stainless steel
• 12 4×30 mm screws – stainless steel
• 02 4×25 mm screws – stainless steel
• 02 4×20 mm screws – stainless steel
• 02 4×16 mm screws – stainless steel
• 03 aluminum tubes 1 “- 99cm
• 02 7/8 “-30cm aluminum tubes
• 01 aluminum tube 7/8 “- 99cm
• 01 aluminum tube 3/4 “- 99cm
• 01 aluminum tube 5/8 “- 99 cm
• 01 1/2 “aluminum tube – 99cm
• Aluminum tube 01 3/8 “- 99cm
• 01 antenna fixing bracket
• 18 4mm pressure washers – stainless steel
• 02 clamps 1.3 / 4 “- galvanized

Mounting:

1) Remove the parts from the packaging and distribute them on the floor according to
numeration

2) In sequence, tighten the provided screws:
– Section 1,2,3 and 4/12 4x30mm screws
– Section 5/02 screws 4x20mm
– Section 6/04 4x16mm screws
For each bolt there are 01 nut and 01 size washer.
If you choose to install the hanger bracket, fix the second screw
after housing the bracket in place.

3) After mounting, connect the V350-CAMP to a mast (not supplied)
in a vertical position at least 2 m from the ground and a maximum diameter of 1.3 / 4 “.

4) Once mounted and fixed, connect a 50 ohm coaxial cable, with
minimum of 20m, it is recommended to use 27.8m until your receiver or transceiver,
No adjustments are necessary.

NOTE: DOES NOT ACCOMPANY THE TRIPOD, ONLY ILLUSTRATIVE.

———————-
