Icom IC-7300mk2 HF +50MHz 100W Transceiver

Description

Icom IC-7300mk2 HF +50MHz 100W Transceiver

This MHParts listing is for the Icom IC-7300mk2 HF +50MHz 100W Transceiver. Brand: Icom. Model: IC-7300MK2. Suitable for repair, replacement or restoration where applicable.

New product: HF/50MHz 50W “IC-7300MK2” .

Successor to the IC-7300

The HF+50MHz all-mode transceiver IC-7300MK2M is an enhanced version of the popular IC-7300 series, which has sold over 100,000 units in total.

The IC-7300MK2 inherits the highly-rated features and performance of previous models, and includes a CW decoder for both English and Japanese, as well as an external display output terminal (HDMI).

In addition, both RMDR and face noise characteristics have been significantly improved by 12dB compared to previous models, and heat generation has also been reduced.

This allows for an even more fulfilling HF band operation experience.

This advanced transceiver meets the needs of a wide range of users, from HF beginners to advanced operators. It features the first-ever

*1 European/Japanese CW decoder

in an amateur radio transceiver. [New Feature]

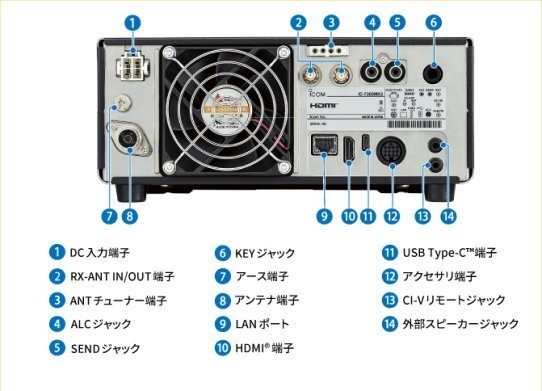

First in Japan* to support external display output via HDMI terminal.

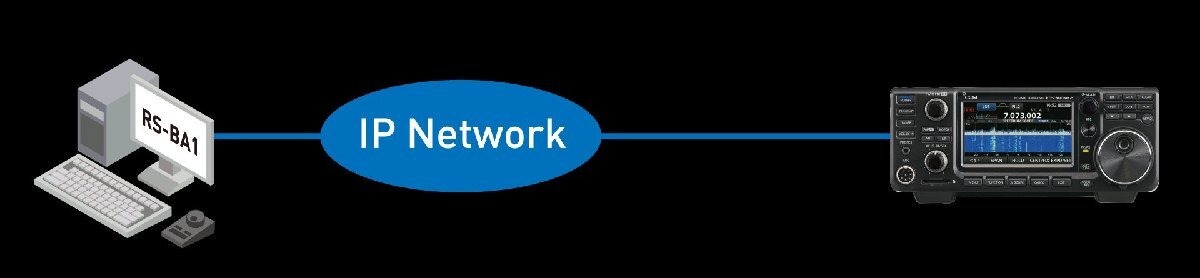

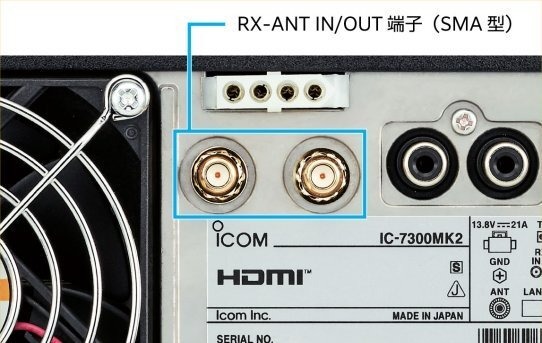

(As of October 2025, as a major amateur radio manufacturer.) Equipped with a LAN port, enabling remote operation with a simple system. Uses USB Type-C®, allowing simultaneous use of two software programs. Equipped with RX-ANT IN/OUT terminals for connecting dedicated receiving antennas, etc. APF function to improve the intelligibility of the target signal. Other functions: Large cooling fan to support long-term operation. Multimeter display. Memory channels: 101ch (99 normal memory channels, 2 scan edge channels). Main accessories: Hand microphone with up/down switch HM-219, power cable, spare fuse, etc.

A variety of CW functions, including a CW receiving reverse function, and more.
